20X2 Character Display

Products Details

We produces and sells 8x1-40x4 monochrome character modules, including YG (yellow green mode), B (blue mode), FSTN(gray mode),DFSTN (black&white mode) and other display modes. You can choose Eglish,Japanese, Russian, European and other font SPI, parallel ports and I2C Iinterface modes.We accept the development and customization of dot matrix COB module products with different specifications. The products meet the environmental protection requirements and ROHS standards, and are widely used in all kinds of digital character instruments and meters and industrial control displays.

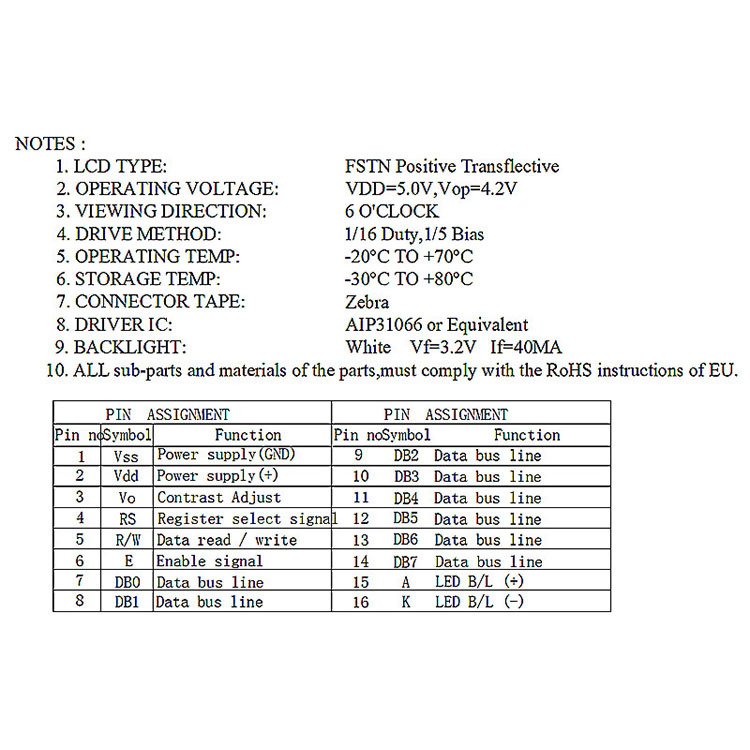

Product No.	20x2 lcd display module

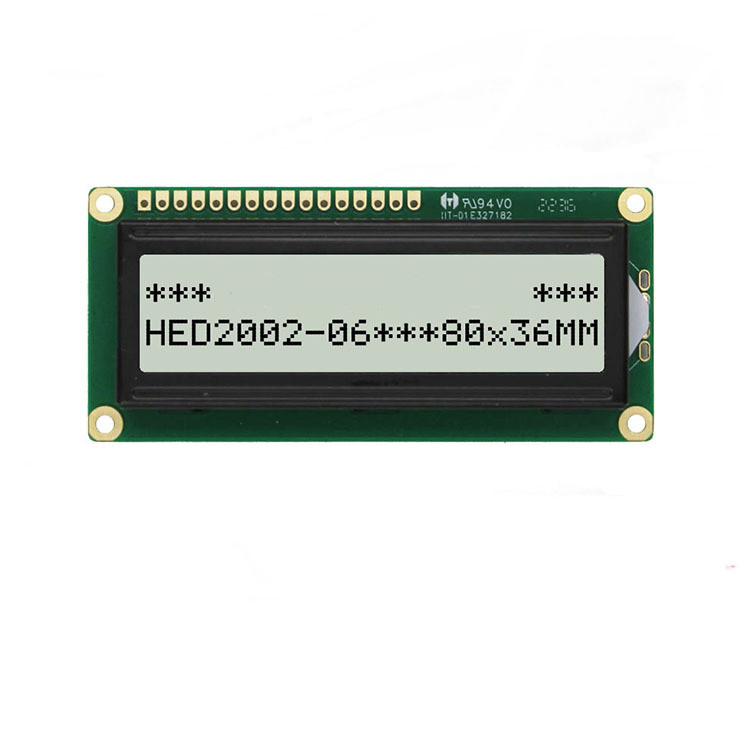

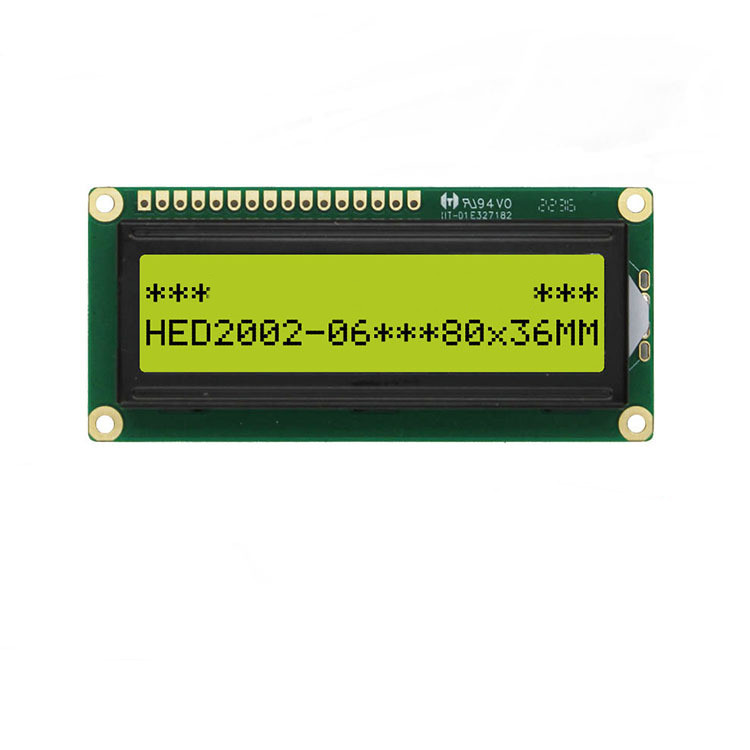

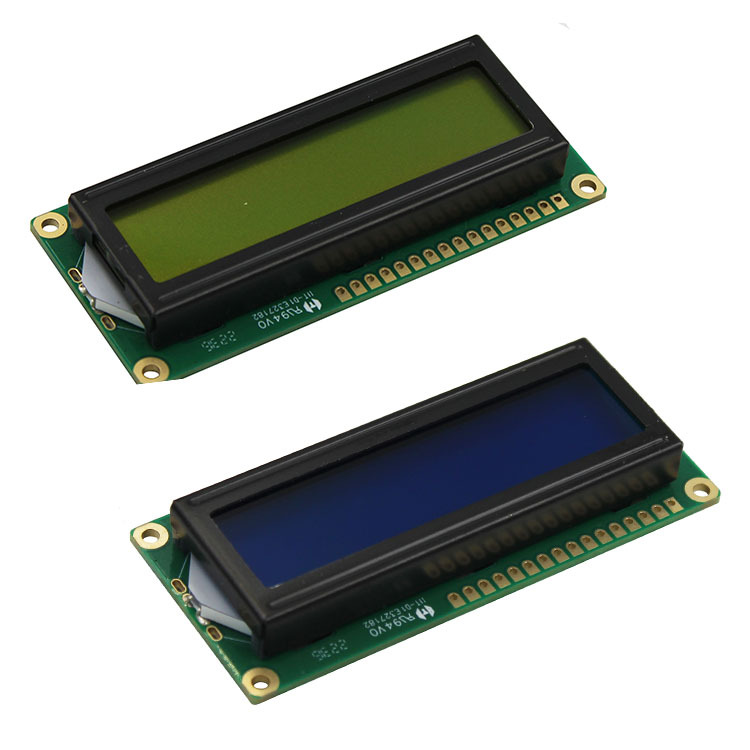

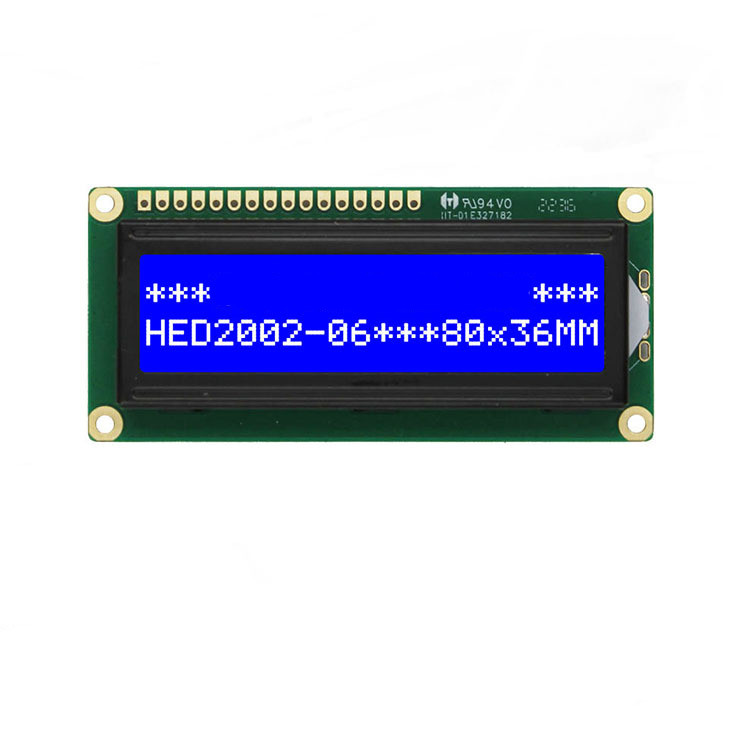

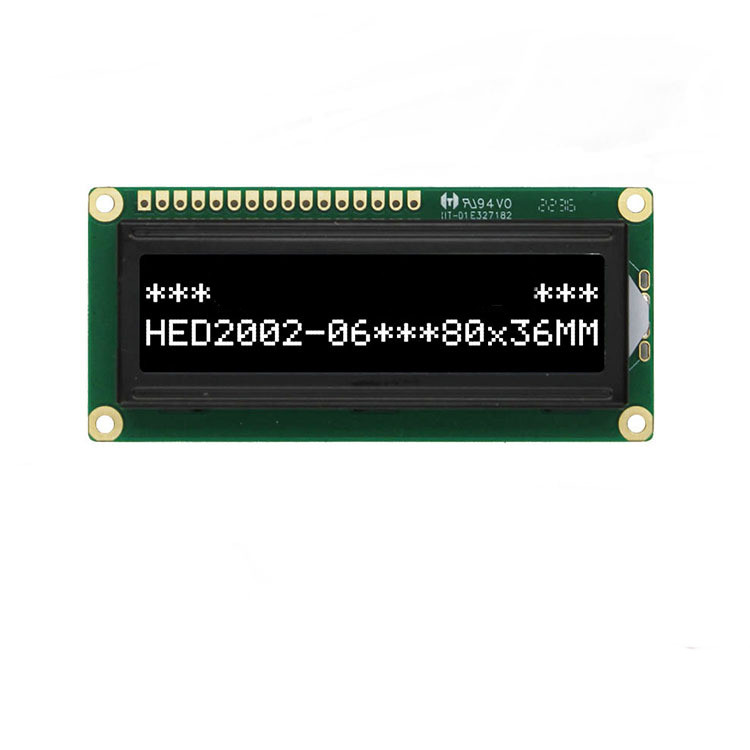

LCD Type	STN(Y/G)/positive; STN(Blue)/Negative; FSTN(Grey)/positive; FSTN(Black)/Negative
Polarizer Type	Transflective

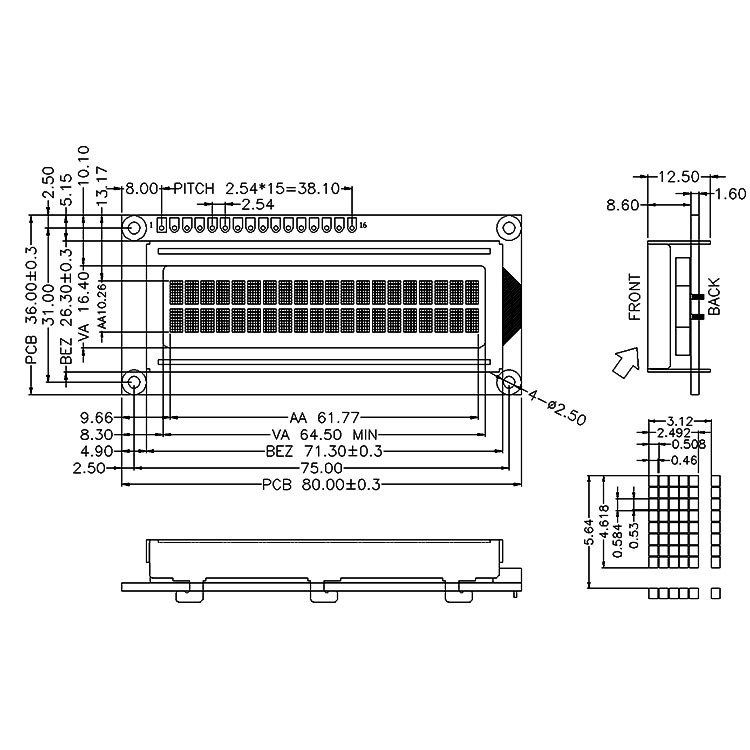

Outline Size	803612.5 mm
View Area	64.5*16.4mm
View Direction	6 O'clock
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
VDD	VDD=5.0V, VOP=4.2V
Drive Method	1/16 Duty, 1/5Bias
Driver / Controller IC	AIP31066 or Equivalent
Backlight type	White LED or Other
