We produces and sells 8x1-40x4 monochrome character modules, including YG (yellow green mode), B (blue mode), FSTN(gray mode),DFSTN (black&white mode) and other display modes. You can choose Eglish,Japanese, Russian, European and other font SPI, parallel ports and I2C Iinterface modes.We accept the development and customization of dot matrix COB module products with different specifications. The products meet the environmental protection requirements and ROHS standards, and are widely used in all kinds of digital character instruments and meters and industrial control displays.
| Product No. | 1601B |
| LCD Type |
STN(Y/G)/positive; STN(Blue)/Negative; FSTN(Grey)/positive; FSTN(Black)/Negative |
| Polarizer Type | Transflective |

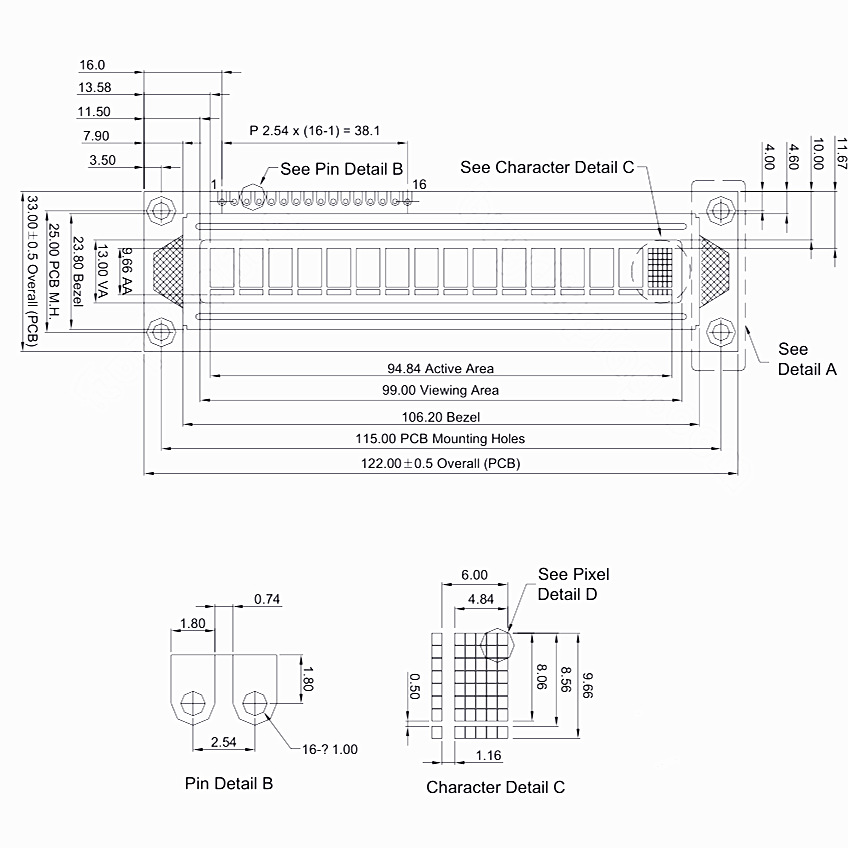

| Outline Size | 122*33*13.5 mm |
| View Area | 99.00*13.00mm |
| Active Area | 94.84*10.38mm |
| Dot size | 1.1*0.92 mm |
| Dot pitch | 0.06*0.06 mm |
| View Direction | 6 O'clock |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |

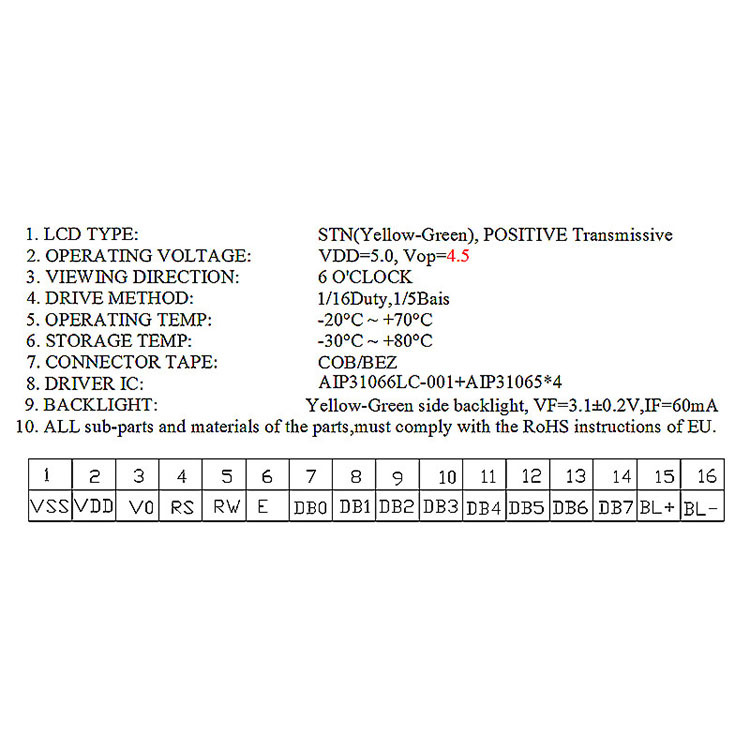

| VDD | VDD=5.0V, VOP=4.5V |
| Drive Method | 1/16 Duty, 1/5Bias |
| Driver / Controller IC | SPLC78D or Equivalent |
| Backlight type | LED Green |
