| Item | Specification |

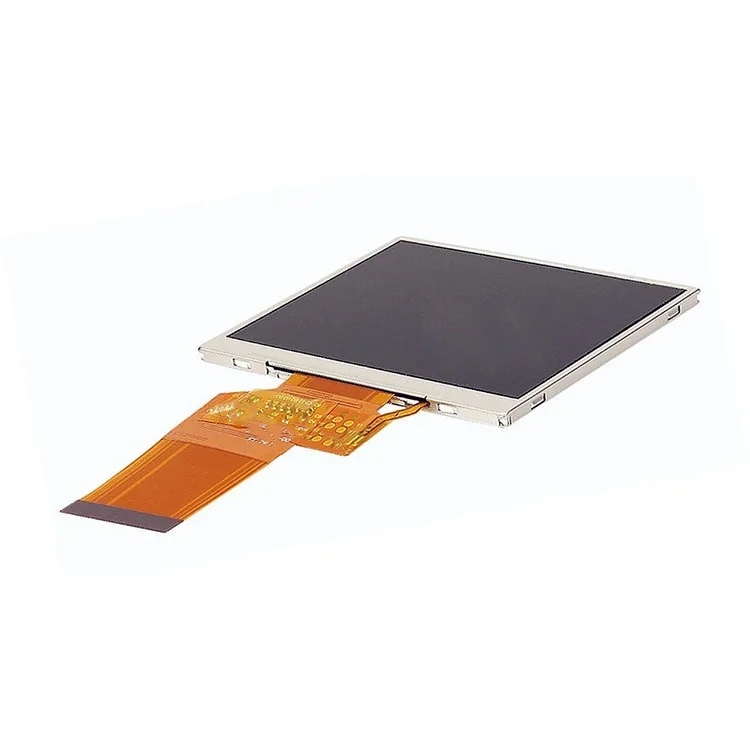

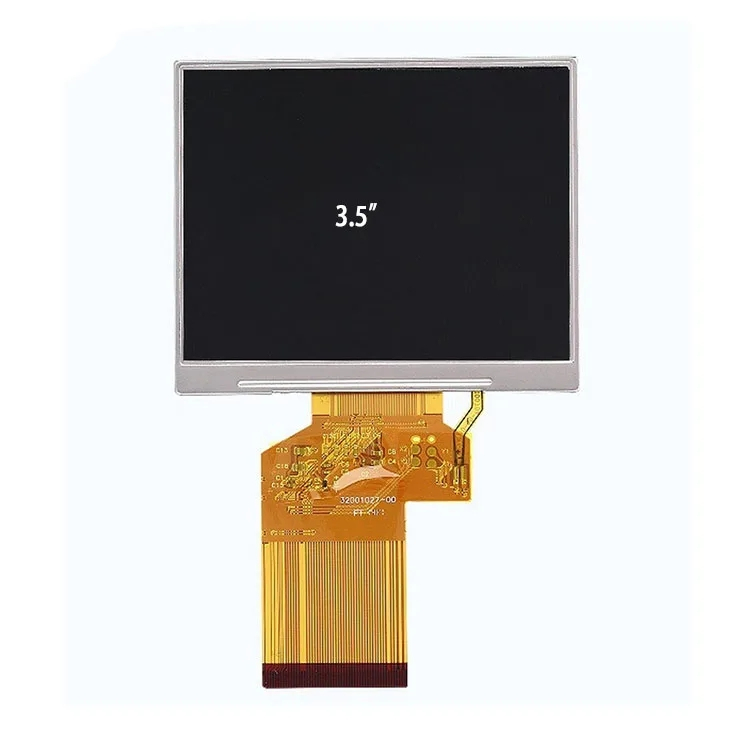

| Module No. | 3.5 inch TFT Module |

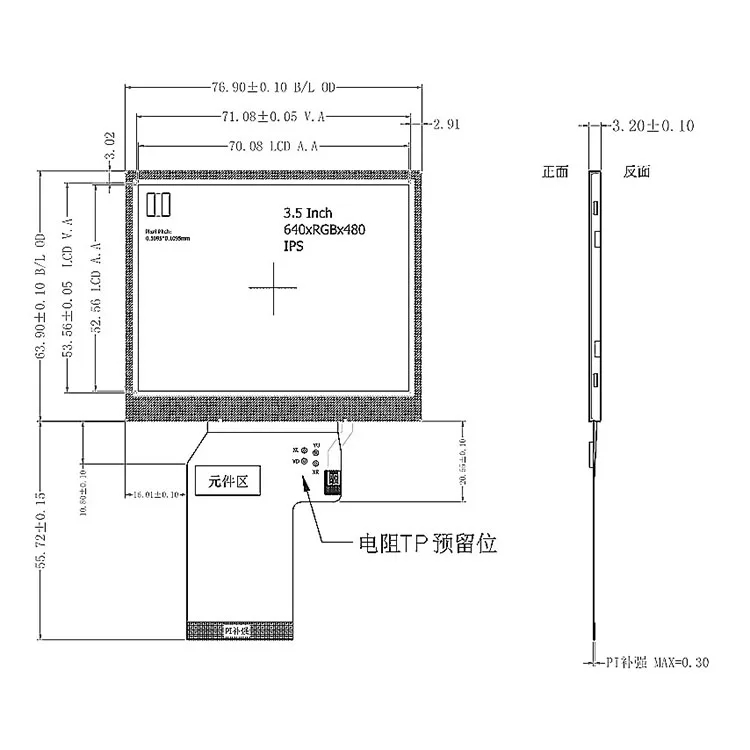

| Module Size | 76.9(L)x63.9(W)x2.9(H) MM |
| Viewing Area | 71.08x53.56 MM |
| Active Area | 70.08x52.56 MM |
| Display Type | 3.5" TFT Transmissive |

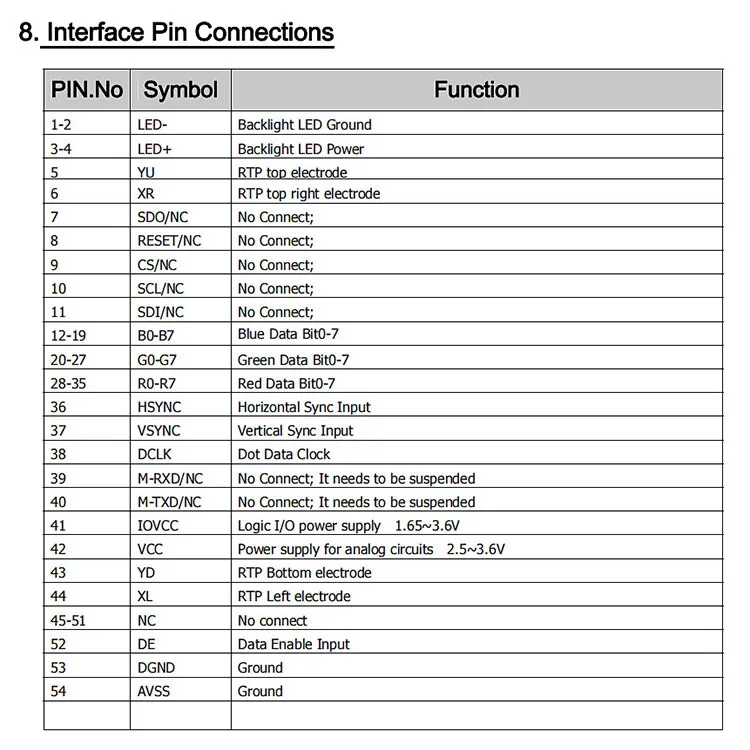

| Interface | Parallel RGB 24-Bit |
| Controller IC | ST7703 or Equal |
| Panel Type | IPS |
| Resolution(Pixel) | 640RGBX480 |
| Number of Colors | 65K/262K/16.7M |
| Pixel Arrangement | RGB |
| Luminance | 250cd/m2 |
| Input Voltage | 2.8V/3.0V/3.3V |
| Viewing Direction | ALL |
| Operating Temperature | -20~ +70 ℃ |
| Storage Temperature | -30~ +80 ℃ |
| Backlight Current(Typ) | 6 chips white LEDS, Serial 90mA MAX |
| Assembly Type | COG+FPC+BL |
| Touchscreen | Can choose |
