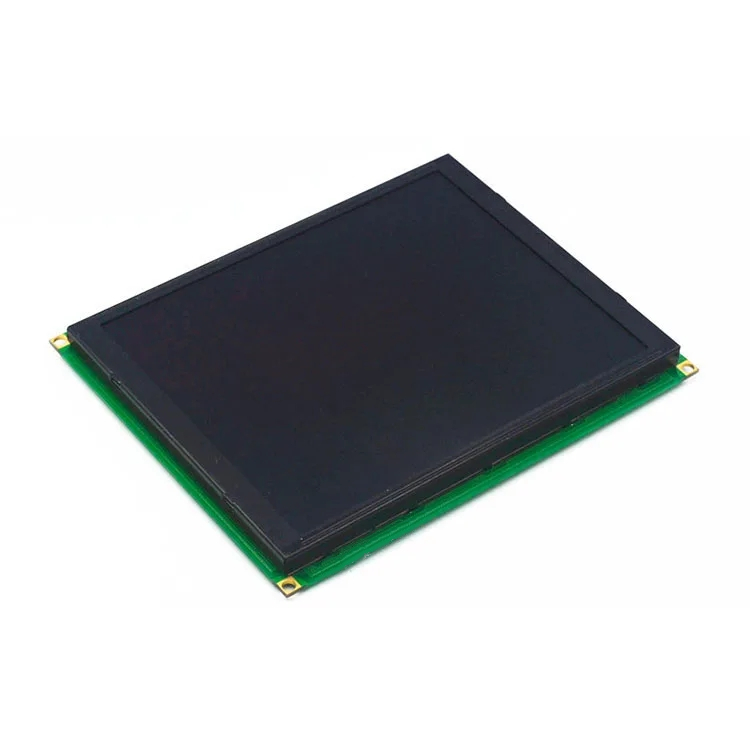

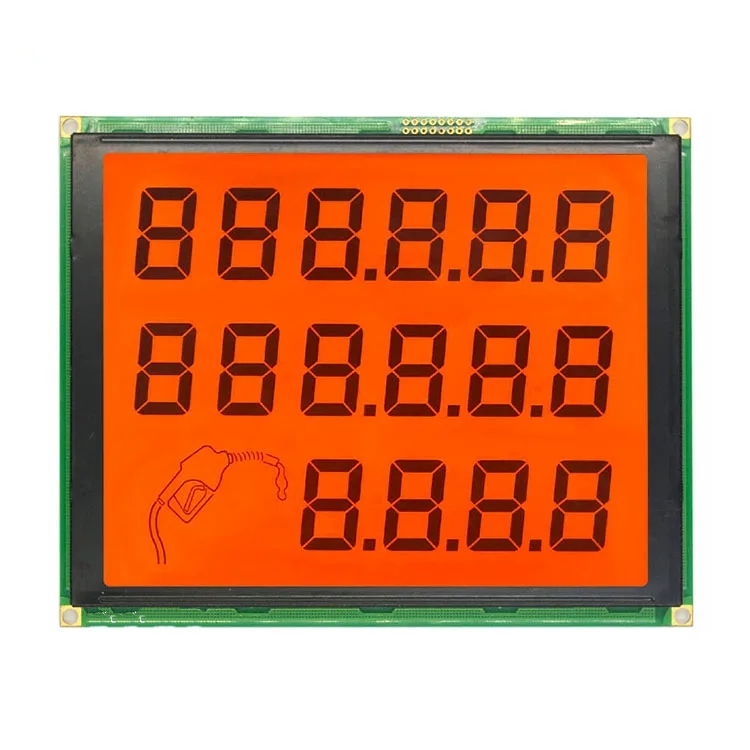

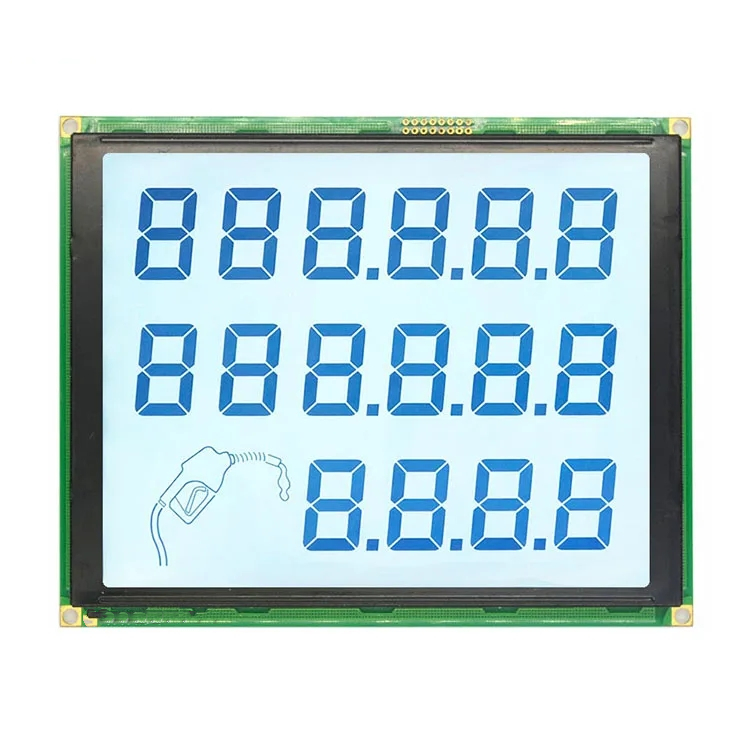

Fuel Dispenser LCD Module

Products Details

Product Name	Fuel dispenser LCD module
COB Type	Segmeng COB

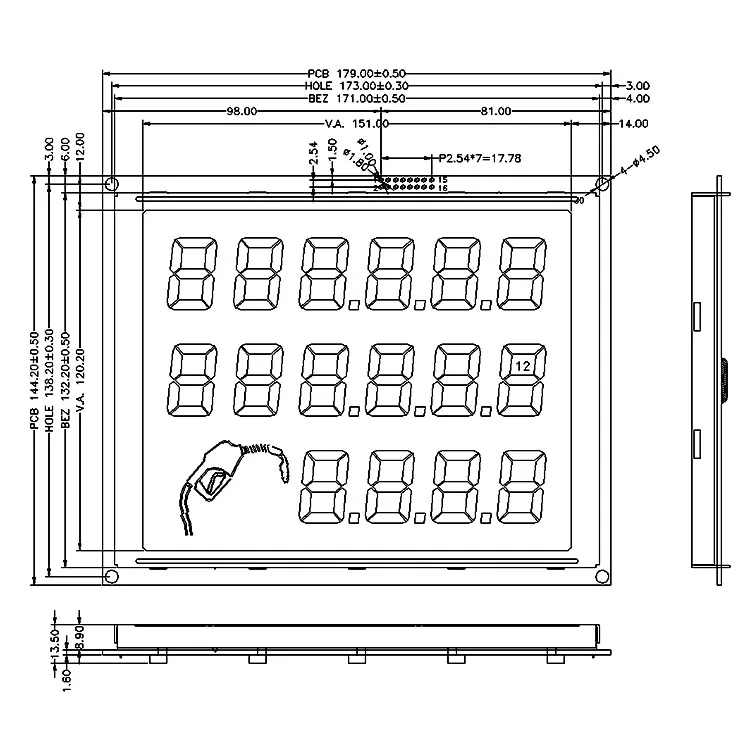

Module Size	179.0(L)x144.2(W)x13.5(H) MM
Operate Voltage	5.0V
Viewing Direction	6:00
Interface	8-Bit Parallel / 16P / 2.54MM
Controller IC	HT16021B or Equal
Operating Temperature	-20~ +70 ℃
Storage Temperature	-30~ +80 ℃
Backlight Current(Typ)	240mA

Notice: We design, develop and customize various segment code LCD modules. Applicable to instruments, industrial control equipment, etc.

Professional production of LCD LCD screen, TN,HTN,STN,FSTN,VA black film, LED backlight, LCM LCD module and so on.

Parameters required for customized LCD module:
Parameter	Reference

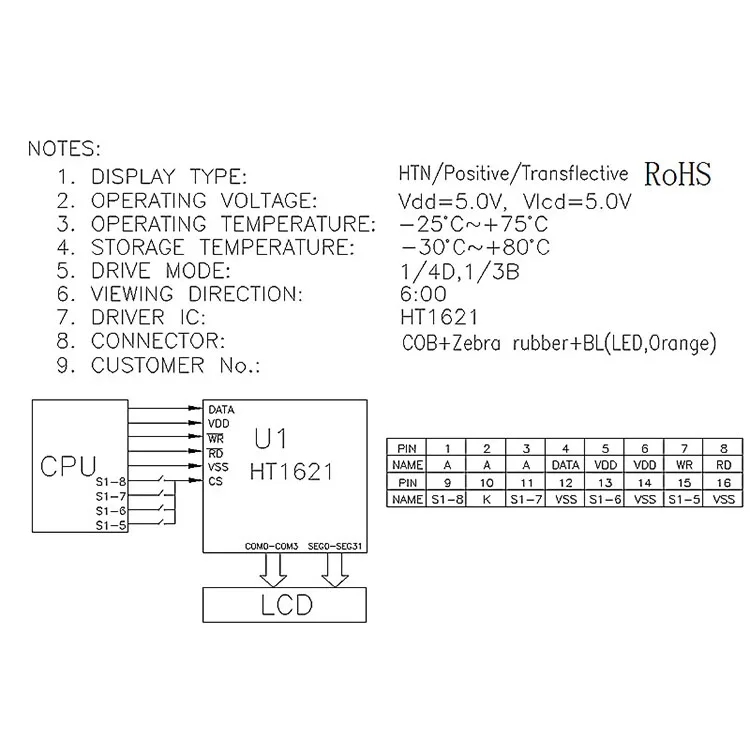

All Detailed Size	LCD length and width,LCM PCB length and width... Pls refer our drawing.
Display type	TN,HTN,STN,FSTN,VA or other ?
Polarizer Mode	Transmissive(must add backlight to use), Transflective(can add backlight to use), Reflective(Don't need backlight to use)
Dispaly mode	Positive (black characters, background color depend on Polarizer color or backlight color) Negative(white characters,background color depend on Polarizer color or backlight color)
Operating Voltage	Conventional voltage generally 3V to 5V (according to customer requirements)
Driving Method	1/4DUTY 1/3BAIS (according to the customer's IC and customer requirements to determine)
Viewing Direction	6 o 'clock (from bottom up), 12 o 'clock (from top down), 3 o 'clock (from right to left), 9 o 'clock (from left to right).
Connector	Metal Pin /Heat Seal /Zebra
Operating Temperature	0 ℃ to 50 ℃, -10 ℃ ~ 60 ℃, -20 ℃ ~ 70 ℃, and -30 ℃ ~ 80 ℃ (over wide temperature)...
Storage Temperature	0 ℃ to 50 ℃, -10 ℃ ~ 60 ℃, -20 ℃ ~ 70 ℃, and -30 ℃ ~ 80 ℃ (over wide temperature)...
Drive IC	See the use of HT1621 or HT1622 or other (according to customer requirements)
Screen Printing	None or according to your needs
For the non-standard LCD/LCM order process as following: Customer confirmation quotation according to the specific situation of the customer's LCD/LCM products → Drawing within 1-3 days → Confirmation of drawings → Ship sample after 7-10 working days → confirmed samples→ 25-45 days for mass production and shipment.
